3D Animation - Multisynq Docs

This tutorial demonstrates how to integrate powerful third-party libraries like Three.js with Multisynq for 3D rendering. You’ll build a 3D bouncing ball simulation where balls bounce off invisible walls and an interactive central sphere that can be dragged and clicked.

Try it out!

Scan or click the QR code to launch a new CodePen instance. Try clicking on or dragging the central sphere to see synchronized 3D interactions across all users!

This tutorial assumes you’ve completed the Simple Animation tutorial as it follows the same architectural pattern extended into 3D.

Architecture Overview

The app follows the same Model-View pattern as Simple Animation:

Root MyModel: Manages BallModel collection and central sphere state
Root MyView: Creates BallView instances and handles Three.js integration
BallModel: Calculates 3D positions and handles collisions
BallView: Creates 3D visual objects and responds to position updates

What You’ll Learn

External Library Integration

Import and initialize Three.js for 3D rendering

3D Event Handling

Convert 2D pointer events to 3D object interactions

Raycasting

Detect 3D object intersections from 2D clicks

Render Loop Integration

Hook Three.js rendering into Multisynq’s update cycle

External Library Integration

Import Methods

You can integrate Three.js using standard web development approaches:

<script src="https://cdnjs.cloudflare.com/ajax/libs/three.js/r128/three.min.js"></script>
<script src="https://cdn.jsdelivr.net/npm/[email protected]/dist/pep.min.js"></script>

import * as THREE from 'three';
import 'pepjs'; // Pointer Events Polyfill

const THREE = require('three');
require('pepjs');

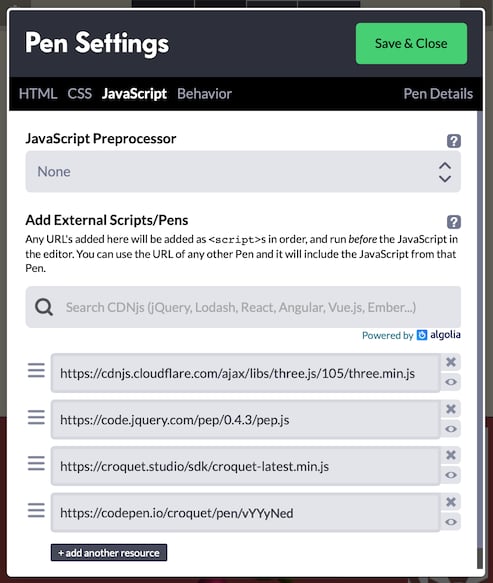

CodePen Configuration

For CodePen projects, add external libraries in the JavaScript settings:

Three.js Scene Initialization

Basic Scene Setup

function setUpScene() {
  // Create scene with lighting
  const scene = new THREE.Scene();
  scene.add(new THREE.AmbientLight(0xffffff, 0.5));

  const light = new THREE.PointLight(0xffffff, 1);
  light.position.set(50, 50, 50);
  scene.add(light);

  // Configure camera
  const camera = new THREE.PerspectiveCamera(
    75,
    window.innerWidth / window.innerHeight,
    0.1,
    10000
  );
  camera.position.set(0, 0, 4);

  // Set up renderer
  const threeCanvas = document.getElementById("three");
  const renderer = new THREE.WebGLRenderer({ canvas: threeCanvas });
  renderer.setClearColor(0xaa4444); // Subdued red background

  // ... event handlers setup ...

  function sceneRender() {
    renderer.render(scene, camera);
  }

  return { scene, sceneRender };
}

Scene Components

Scene Object

Container for all 3D objects, lights, and cameras

Lighting

Ambient light for overall illumination + point light for shadows

Camera

Perspective camera positioned to view the bouncing balls

Renderer

WebGL renderer that draws the scene to a canvas element

3D Event Handling

Pointer Event Processing

Convert 2D pointer events to 3D object interactions using raycasting:

function onPointerDown(event) {
  event.preventDefault();

  // Convert window coordinates to normalized device coordinates
  setMouse(event); // (-1 to +1 on each axis)

  // Cast ray from camera through mouse position
  raycaster.setFromCamera(mouse, camera);
  const intersects = raycaster.intersectObjects(scene.children);

  // Find draggable objects
  for (let i = 0; i < intersects.length && !dragObject; i++) {
    const threeObj = intersects[i].object;
    if (threeObj.q_draggable) {
      dragObject = threeObj;
      // ... initialize drag state ...
    }
  }
}

Drag Movement with Throttling

function onPointerMove(event) {
  event.preventDefault();

  if (!dragObject) return;

  // Throttle events to reduce network load
  if (event.timeStamp - lastTime < THROTTLE_MS) return;
  lastTime = event.timeStamp;

  const lastMouse = {...mouse};
  setMouse(event);

  // Ignore micro-movements
  if (Math.abs(mouse.x - lastMouse.x) < 0.01 &&
      Math.abs(mouse.y - lastMouse.y) < 0.01) return;

  // Calculate 3D position from 2D mouse movement
  raycaster.setFromCamera(mouse, camera);
  const dragPoint = raycaster.ray.intersectPlane(dragPlane, new THREE.Vector3());
  dragObject.q_onDrag(new THREE.Vector3().addVectors(dragPoint, dragOffset));
  dragged = true;
}

Event Throttling Strategy

Time Throttling

Limit events to 20 per second (50ms minimum interval)

Distance Throttling

Ignore movements smaller than 0.01 units

Network Optimization

Reduces bandwidth usage without affecting user experience

Touch-Friendly

Particularly important for mobile devices

Click vs. Drag Detection

function onPointerUp(event) {
  event.preventDefault();
  if (dragObject) {
    // If no dragging occurred, treat as click
    if (!dragged && dragObject.q_onClick) {
      dragObject.q_onClick();
    }
    dragObject = null;
    dragged = false;
  }
}

Custom Event Handling

Adding Custom Properties

Add custom properties to Three.js objects using q_ prefix to avoid conflicts:

// In MyView initialization
this.centerSphere.q_onClick = () => this.publish(model.id, 'reset');
this.centerSphere.q_draggable = true;
this.centerSphere.q_onDrag = posVector => this.posFromSphereDrag(posVector.toArray());

Click Event Handling

Reset Functionality

// In MyModel
this.subscribe(this.id, 'reset', this.resetCenterSphere);

resetCenterSphere() {
  this.publish(this.id, 'recolor-center-sphere', this.neutralGrayColor);
}

// In BallModel
this.subscribe(this.sceneModel.id, 'reset', this.resetPosAndSpeed);

resetPosAndSpeed() {
  this.position = {...this.sceneModel.centerSphere.position};
  this.speed = this.randomSpeed();
  // Position will be published on next step()
}

Models must handle events to ensure synchronization across all users. Even if a view could handle events directly, involving the model ensures all session instances receive the same events.

Drag Event Handling

Position Processing

posFromSphereDrag(pos) {
  const limit = Q.CONTAINER_SIZE / 2;

  // Constrain x and y to container bounds
  [0, 1].forEach(i => {
    if (Math.abs(pos[i]) > limit) {
      pos[i] = limit * Math.sign(pos[i]);
    }
  });

  this.publish(this.sceneModel.id, 'sphere-drag', pos);
}

Data Serialization

Convert Three.js objects to plain JavaScript arrays before publishing as events. Multisynq doesn’t know how to serialize external library objects like THREE.Vector3.

// Good: Convert to array
dragObject.q_onDrag = posVector => this.posFromSphereDrag(posVector.toArray());

// Bad: Try to serialize Vector3 directly
// dragObject.q_onDrag = posVector => this.publish('sphere-drag', posVector);

Render Loop Integration

Controlled Rendering

Instead of using requestAnimationFrame directly, integrate with Multisynq’s update cycle:

function setUpScene() {
  // ... scene setup ...

  function sceneRender() {
    renderer.render(scene, camera);
  }

  return { scene, sceneRender };
}

MyView Integration

class MyView extends Multisynq.View {
  init() {
    const sceneSpec = setUpScene();
    this.scene = sceneSpec.scene;
    this.sceneRender = sceneSpec.sceneRender;

    // ... create 3D objects ...
  }

  update(time) {
    // Called automatically by Multisynq
    this.sceneRender();
  }
}

Benefits of Controlled Rendering

Synchronization

Rendering happens at exact moments when state changes

Performance

Avoids unnecessary renders when nothing changes

Determinism

Consistent rendering timing across all users

Integration

Seamless integration with Multisynq’s lifecycle

3D Object Management

Creating 3D Objects

// Create sphere geometry and material
const sphereGeometry = new THREE.SphereGeometry(Q.SPHERE_RADIUS, 32, 32);
const sphereMaterial = new THREE.MeshPhongMaterial({ color: 0x808080 });
this.centerSphere = new THREE.Mesh(sphereGeometry, sphereMaterial);

// Add to scene
this.scene.add(this.centerSphere);

// Make interactive
this.centerSphere.q_draggable = true;
this.centerSphere.q_onClick = () => this.publish(model.id, 'reset');

Dynamic Object Updates

// Update position based on model state
updateSpherePosition(position) {
  this.centerSphere.position.set(position[0], position[1], position[2]);
}

// Update color based on model state
updateSphereColor(color) {
  this.centerSphere.material.color.setHex(color);
}

Performance Considerations

Optimization Techniques

Event Throttling

Limit pointer events to 20 per second to reduce network load

Geometry Reuse

Create geometry once and reuse for multiple objects

Efficient Updates

Only update 3D objects when model state actually changes

LOD (Level of Detail)

Use simpler geometry for distant objects

Memory Management

// Dispose of geometry and materials when no longer needed
dispose() {
  this.sphereGeometry.dispose();
  this.sphereMaterial.dispose();
  this.renderer.dispose();
}

Advanced Integration Patterns

Custom Object Properties

// Add metadata to Three.js objects
mesh.userData = {
  multisynqId: model.id,
  modelType: 'ball',
  interactive: true
};

// Access in event handlers
if (intersectedObject.userData.interactive) {
  // Handle interaction
}

Multi-Library Integration

// Combine Three.js with physics engines
import * as CANNON from 'cannon-es';

// Create physics world
const world = new CANNON.World();
world.gravity.set(0, -9.82, 0);

// Sync Three.js visuals with physics simulation
updatePhysics() {
  world.step(1/60);
  this.ballMesh.position.copy(this.ballBody.position);
  this.ballMesh.quaternion.copy(this.ballBody.quaternion);
}

Troubleshooting

Common Issues

Serialization Errors

Always convert Three.js objects to plain arrays before publishing

Event Conflicts

Use q_ prefix for custom properties to avoid naming conflicts

Performance Issues

Implement proper event throttling and geometry reuse

Synchronization Problems

Ensure all state changes go through the Model layer

Debug Tips

// Log raycasting results
console.log('Intersections:', raycaster.intersectObjects(scene.children));

// Visualize ray casting
const helper = new THREE.ArrowHelper(
  raycaster.ray.direction,
  raycaster.ray.origin,
  100,
  0xff0000
);
scene.add(helper);

Next Steps

Multiblaster Game

See 3D techniques in a complete multiplayer game

Data API

Learn advanced data management and sharing techniques

Best Practices Summary

Library Integration

Use standard import methods and initialize in view constructor

Event Handling

Implement proper throttling and convert coordinates carefully

State Management

Keep 3D objects in sync with Multisynq model state

Performance

Optimize rendering, reuse geometry, and manage memory properly

This tutorial demonstrates how to create sophisticated 3D collaborative experiences by combining Multisynq’s synchronization capabilities with Three.js’s powerful 3D rendering. The same patterns can be applied to other 3D libraries and more complex applications.

​Try it out!

​Architecture Overview

​What You’ll Learn

External Library Integration

3D Event Handling

Raycasting

Render Loop Integration

​External Library Integration

​Import Methods

​CodePen Configuration

​Three.js Scene Initialization

​Basic Scene Setup

​Scene Components

​3D Event Handling

​Pointer Event Processing

​Drag Movement with Throttling

​Event Throttling Strategy

Time Throttling

Distance Throttling

Network Optimization

Touch-Friendly

​Click vs. Drag Detection

​Custom Event Handling

​Adding Custom Properties

​Click Event Handling

​Reset Functionality

​Drag Event Handling

​Position Processing

​Data Serialization

​Render Loop Integration

​Controlled Rendering

​MyView Integration

​Benefits of Controlled Rendering

Synchronization

Performance

Determinism

Integration

​3D Object Management

​Creating 3D Objects

​Dynamic Object Updates

​Performance Considerations

​Optimization Techniques

​Memory Management

​Advanced Integration Patterns

​Custom Object Properties

​Multi-Library Integration

​Troubleshooting

​Common Issues

Serialization Errors

Event Conflicts

Performance Issues

Synchronization Problems

​Debug Tips

​Next Steps

Multiblaster Game

Data API

​Best Practices Summary

Library Integration

Event Handling

State Management

Performance

Try it out!

Architecture Overview

What You’ll Learn

External Library Integration

Import Methods

CodePen Configuration

Three.js Scene Initialization

Basic Scene Setup

Scene Components

3D Event Handling

Pointer Event Processing

Drag Movement with Throttling

Event Throttling Strategy

Click vs. Drag Detection

Custom Event Handling

Adding Custom Properties

Click Event Handling

Reset Functionality

Drag Event Handling

Position Processing

Data Serialization

Render Loop Integration

Controlled Rendering

MyView Integration

Benefits of Controlled Rendering

3D Object Management

Creating 3D Objects

Dynamic Object Updates

Performance Considerations

Optimization Techniques

Memory Management

Advanced Integration Patterns

Custom Object Properties

Multi-Library Integration

Troubleshooting

Common Issues

Debug Tips

Next Steps

Best Practices Summary
